Product Details

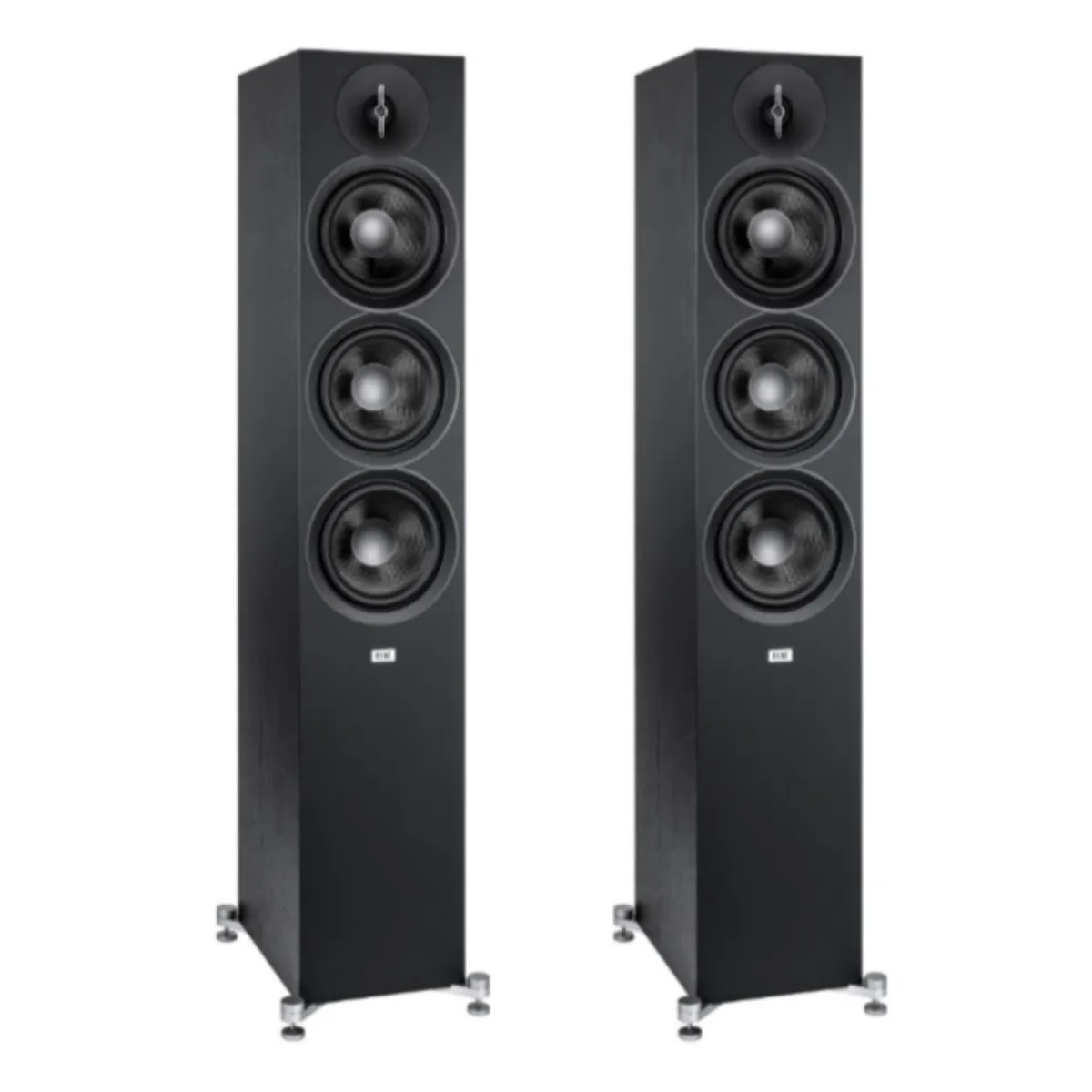

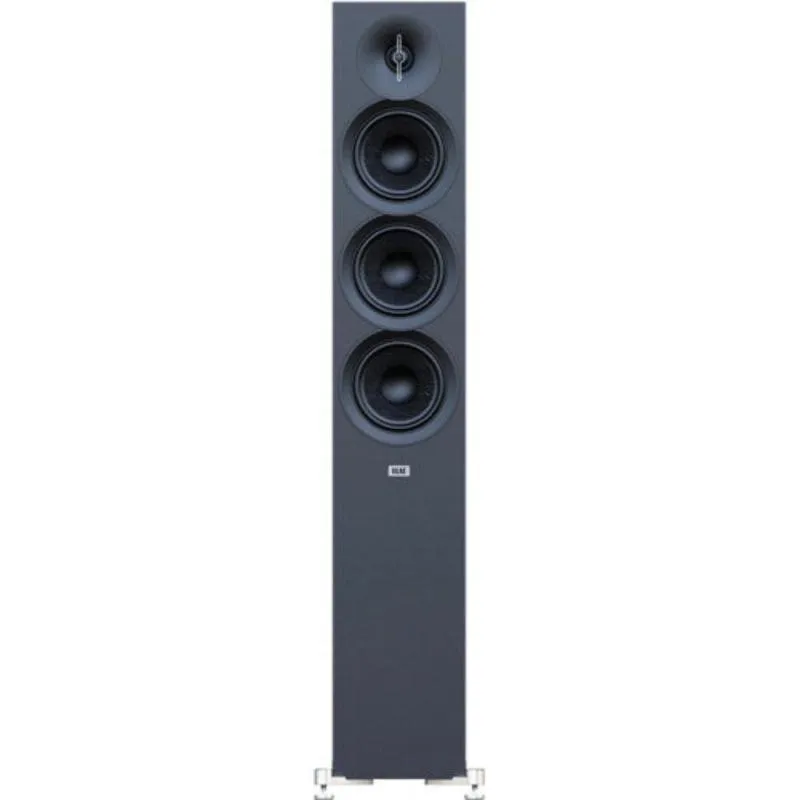

＋Experience exceptional style and sound without breaking the bank with the ELAC Debut 3.0 DF63 Floorstanding 3-Way Speaker. The DF63 features a 3-way speaker design with a 6.5" aramid fiber bass woofer, dual 6.5" aramid fiber mid-range woofers, and ELAC's bespoke 1" aluminum dome tweeter. The bass-reflex design uses dual flared rear-firing ports to enhance low frequencies and reduce distortion. Constructed from durable black ash finished MDF, with a magnetic grille, and adjustable leveling feet, the DF63 speakers provide high-quality sound and aesthetics for stereo and surround sound applications.
Warranty:
2-year manufacturer's warranty
Features:
- 3-Way Speaker with 100W Nominal Power
- 1" Aluminum Dome Tweeter
- 2 x 6.5" Aramid Fiber Cone Midrange
- 6.5" Aramid Fiber Cone Woofer

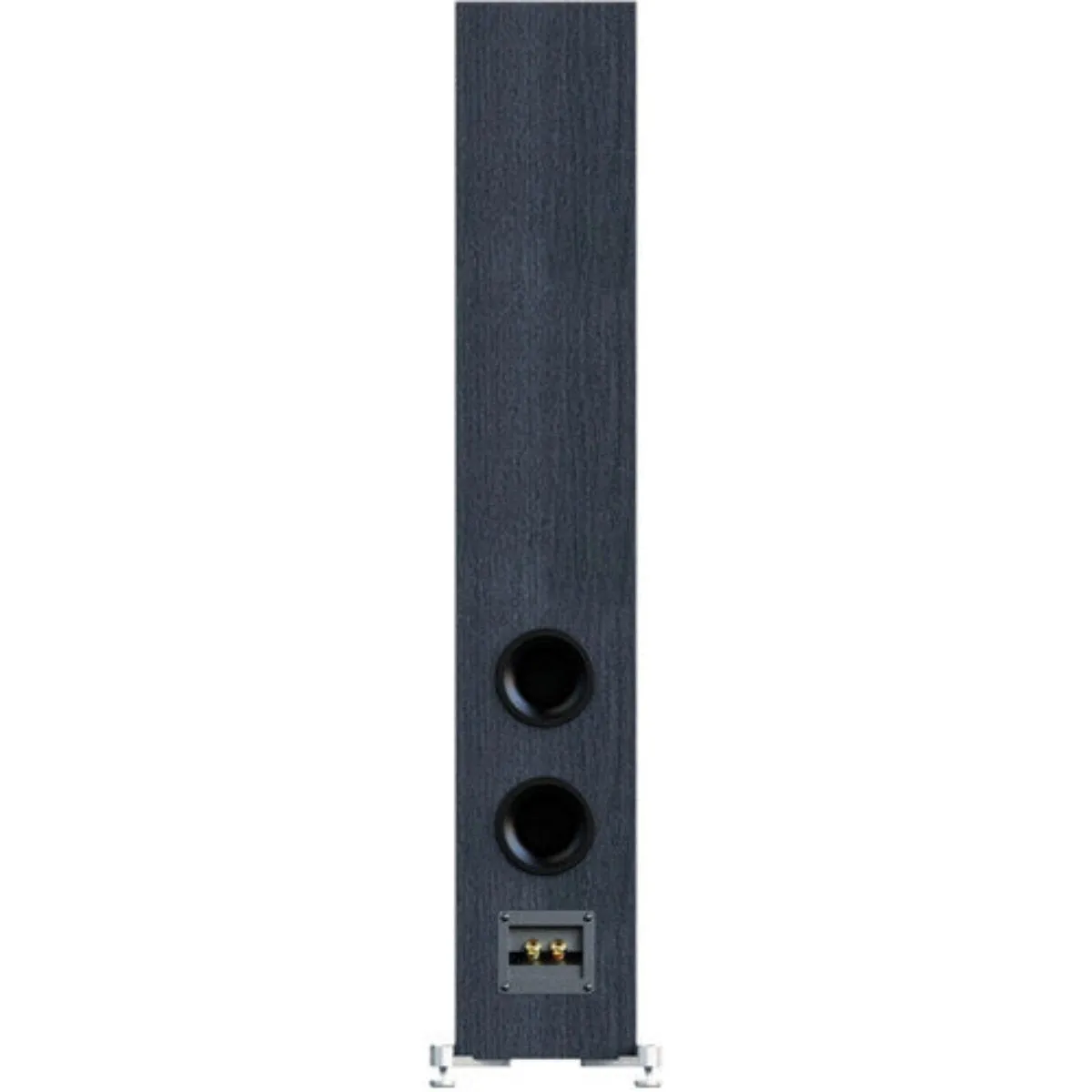

- Dual Flared Rear-Firing Ports
- CARB2 Rated 16mm MDF Cabinet
- 5-Way Dual Binding Posts
- Magnetic Grille
Video:
3-Way Design
The 3-way design of the new Debut 3.0 floorstanding speakers offers superior audio performance by dividing the frequency spectrum among dedicated drivers. This ensures optimal handling of lows, mids, and highs, resulting in clearer and more accurate sound reproduction. The speakers deliver a spacious, immersive listening experience with rich, detailed sound.
Aluminum Dome Tweeter
ELAC's 1" aluminum tweeters undergo rigorous calibration to enhance the distinct acoustic properties. The light yet stiff construction allows accurate reproduction of high frequencies with remarkable clarity and a wider dispersion pattern.
Aramid Fiber Woofers
The Debut 3.0 Series boasts aramid fiber woofers, known for their light yet robust build and exceptional bass response.
Internally Braced
The internal bracing of ELAC's Debut 3.0 speakers enhances structural integrity, reducing resonances for improved sound quality.

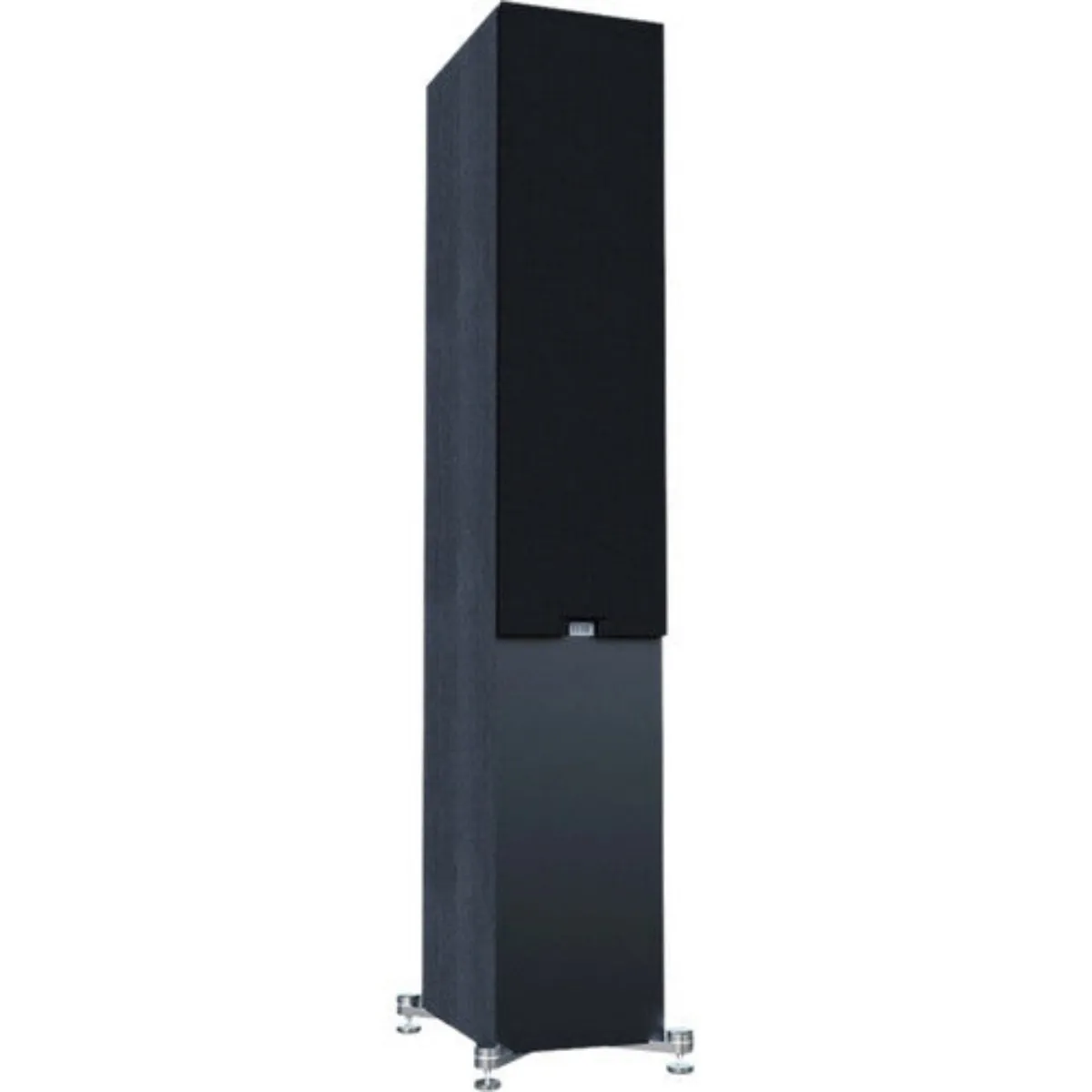

Improved Cosmetics & Magnetic Grilles
The ELAC Debut 3.0 series speakers feature an updated cosmetic design and magnetic grilles, allowing easy removal for those who prefer an exposed driver look.
Technical Specifications:
| Speaker Type | 3-Way, Bass Reflex |
|---|---|
| Frequency Response -6 dB: | 31 to 38Khz |
| Nominal impedance | 6 Ω |
| Sensitivity @2.83 v/1m | 87.5 dB |
| Crossover Frequency | 550 Hz, 2000 Hz |
| Recommended Amplifier Power | 30 - 180 W |
| Peak power handling | 140 W |
| Tweeter | 1-inch Aluminum dome |
| Midrange (aramid-fiber) | 6.5 inch |
| Woofer (aramid-fiber) | 2 x 6.5 inch |
| Cabinet | CARB2 rated 16mm MDF |
| Cabinet Finish | Black Ash vinyl, Satin Black Vinyl Front |
| Port | Dual Flared |
| Binding Post | 5-way metal |
| Width (in / mm) | 7.7/195 |
| Height (in / mm) | 43.1/1094 |
| Depth (in / mm) | 10.6/268 |
| Net Weight (lbs / KG) | 38.8/17.6 |
